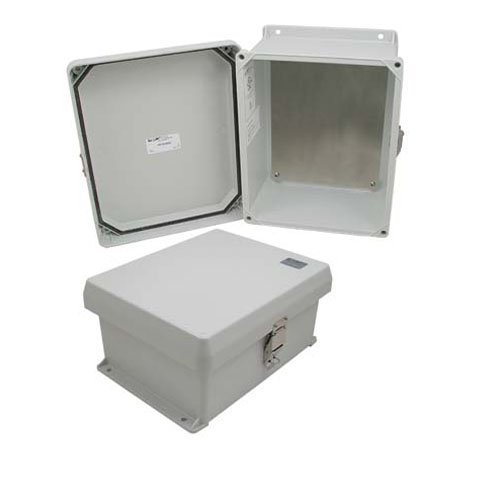

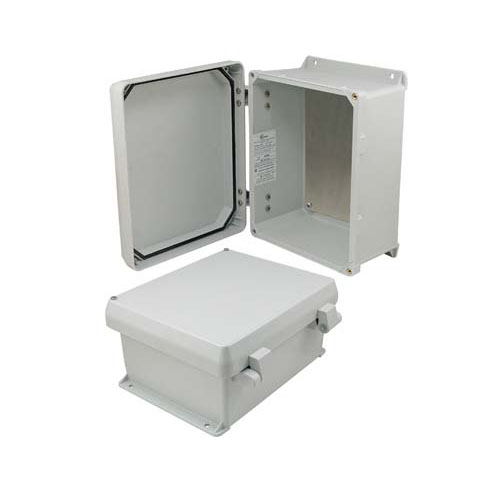

10x8x5 Inch UL® Listed Weatherproof NEMA 4X Enclosure w/Aluminum Mounting Plate, Non-Metallic Hinges
The NBN series are UL® Listed rugged weatherproof enclosures featuring two non-metallic hinges and a continuous gasketed lid secured by two stainless steel captive screws that ensure optimal integrity. Constructed from molded halogen free self extinguishing fiberglass reinforced polyester (FRP), they are well suited for both indoor and outdoor applications in high temperature or corrosive environments. The NBN100805-KIT includes a Blank Aluminum Mounting Plate permitting free form layout of equipment. The Enclosure and Mounting Plate combination is ideal for custom applications. Mounting stand-offs inside the enclosure are used to secure the Mounting Plate. Features Enclosure made from hot compression molded…
Descripción
The NBN series are UL® Listed rugged weatherproof enclosures featuring two non-metallic hinges and a continuous gasketed lid secured by two stainless steel captive screws that ensure optimal integrity. Constructed from molded halogen free self extinguishing fiberglass reinforced polyester (FRP), they are well suited for both indoor and outdoor applications in high temperature or corrosive environments.
The NBN100805-KIT includes a Blank Aluminum Mounting Plate permitting free form layout of equipment. The Enclosure and Mounting Plate combination is ideal for custom applications. Mounting stand-offs inside the enclosure are used to secure the Mounting Plate.
Features
- Enclosure made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester
- Can withstand continuous temperatures -58°F to 302°F (-50°C to 150°C), momentary exposure up to 392°F (200°C).
- Includes blank aluminum mounting plate
- NEMA 4X / IP66-11 rated
- Non-metallic hinges
Application
- High temperature or corrosive environments
- Indoor and outdoor installations
- Industrial control equipment installations
- Hydraulic or pneumatic control installations
- Wireless LAN Wi-Fi equipment installations
Información adicional
| Peso | 2,721552 kg |
|---|---|
| Size (HxWxD) | 10x08x05 |
| Material | Fiberglass Reinforced Polyester (FRP) |
| Powered | No |
| Power Configuration | None |
| Mounting Plate Type | Blank Mounting Plate |
| UL Listed | Yes |
| Country of origin |
