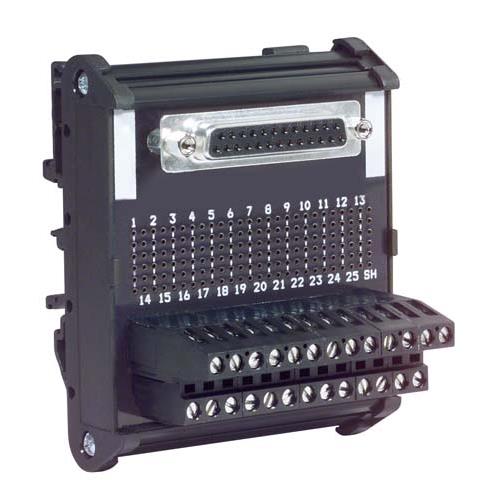

Interface Module, DB25 Female
147,19 € – 159,99 €
These DIN rail mountable DB25 female interface modules feature a unique series of plated through holes that allow for the insertion of electronic components inline or across any circuit. Terminal block connectors accept 26-12 AWG wire, are easily terminated and do not require crimp ferrules. Features Provides a transition from standard D-Sub & RJ45 connectors to individually wired terminal blocks Connectors are equipped with threaded locking inserts to insure mating cables are secured Printed marking helps to simplify wiring PCB component holes on all modules allows for various components to be installed across any circuit Also available with DB9, DB15,…
14 disponibles
159,99 €
Descripción
These DIN rail mountable DB25 female interface modules feature a unique series of plated through holes that allow for the insertion of electronic components inline or across any circuit. Terminal block connectors accept 26-12 AWG wire, are easily terminated and do not require crimp ferrules.
Features
- Provides a transition from standard D-Sub & RJ45 connectors to individually wired terminal blocks
- Connectors are equipped with threaded locking inserts to insure mating cables are secured
- Printed marking helps to simplify wiring
- PCB component holes on all modules allows for various components to be installed across any circuit
- Also available with DB9, DB15, DB37, DB50 and RJ45 female connectors
Application
- Serial data transmission
- Data networks
- Instrument control
- Device management
Información adicional
| Peso | 0,15422128000000002 kg |
|---|---|
| Connector Type | 25-Pin D-Subminiature |
| Connector Gender | Female |
| Cable Protocol or Standard | |
| Attach Method | Push-On |
| Mounting Type | Rail Mount |
| Connector Angle | Straight |
| Design Class | D-Subminiature |
| Cable Termination Method | Field Termination |
| Color | Black |
