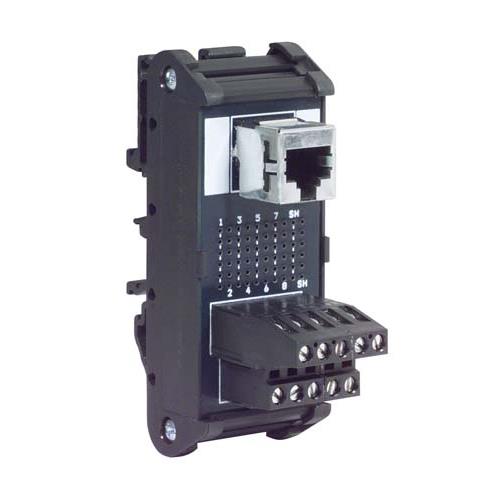

Interface Module, RJ45 Jack
149,39 € – 165,99 €
These DIN rail mountable RJ45 female interface modules feature a unique series of plated through holes that allow for the insertion of electronic components inline or across any circuit. Terminal block connectors accept 26-12 AWG wire, are easily terminated and do not require crimp ferrules. Features Provides a transition from standard D-Sub & RJ45 connectors to individually wired terminal blocks Connectors are equipped with threaded locking inserts to insure mating cables are secured Printed marking helps to simplify wiring PCB component holes on all modules allows for various components to be installed across any circuit Also available with DB9, DB15,…
101 disponibles
165,99 €
Descripción
These DIN rail mountable RJ45 female interface modules feature a unique series of plated through holes that allow for the insertion of electronic components inline or across any circuit. Terminal block connectors accept 26-12 AWG wire, are easily terminated and do not require crimp ferrules.
Features
- Provides a transition from standard D-Sub & RJ45 connectors to individually wired terminal blocks
- Connectors are equipped with threaded locking inserts to insure mating cables are secured
- Printed marking helps to simplify wiring
- PCB component holes on all modules allows for various components to be installed across any circuit
- Also available with DB9, DB15, DB25, DB37, and DB50 female connectors
Application
- Serial data transmission
- Data networks
- Instrument control
- Device management
Información adicional
| Peso | 0,07711064000000001 kg |
|---|---|
| Connector Type | RJ45 |
| Connector Gender | Female |
| Shielding | Unshielded |
| Attach Method | Latching |
| Mounting Type | Rail Mount |
| Connector Angle | Straight |
| Design Class | D-Subminiature |
| Cable Termination Method | Field Termination |
| Color | Black |
| Connector Code or Key | Standard |
| Country of origin |
