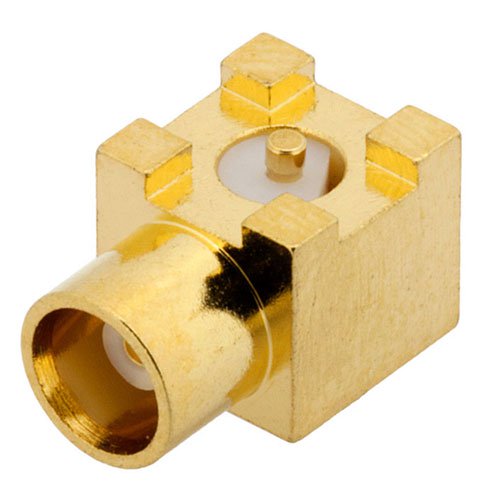

MCX Jack Right Angle Connector Solder Attachment Surface Mount PCB

RFPCB-MCX-FR-6G-119 MCX jack right angle PCB connector available from L-com has a 50 Ohm impedance. This RF connector has a Surface Mount connector mount interface and is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. This MCX jack connector uses solder as an attachment method. Our jack MCX PCB connector provides a maximum frequency of 6 GHz. The MCX connector is available in a 0.37-inch length and 0.23-inch width.

The L-com MCX jack PCB connector has a Teflon dielectric type. This MCX PCB connector has a Beryllium Copper body with gold plating. Our RFPCB-MCX-FR-6G-119 MCX connector has a brass contact with gold plating.

This L-com MCX jack connector will ship the same day as purchased. Our MCX jack connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for worldwide shipment. We also build MCX custom connector cable assemblies that will ship the same day as well.

The MCX jack connector with 50 Ohm impedance has a weight of 0.007 lbs. This Push-on RF connector has a high quality construction. The jack coaxial connector is capable of operating at temperatures ranging from -65 deg C to 165 deg C. We currently have a variety of antenna, audio/video, Ethernet, fiber optic, and USB connectors in our portfolio that are ready to ship today. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF that meets your requirements.
