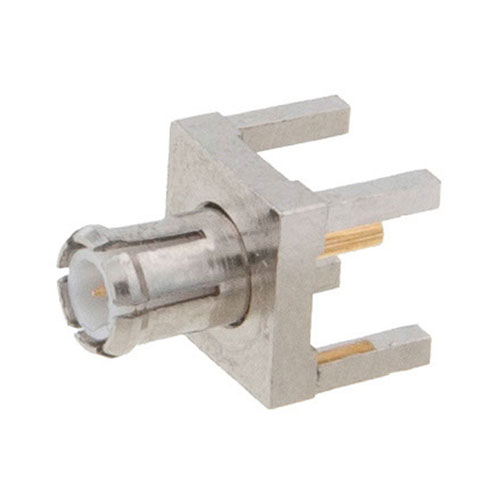

MCX Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing

RFPCB-MCX-MS-6G-117 MCX Plug PCB connector available from L-com has a 50 Ohm impedance. This RF connector has a thru hole connector mount interface and is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. This MCX Plug connector uses solder as an attachment method. Our Plug MCX PCB connector provides a maximum frequency of 6 GHz. The MCX connector is available in a 0.38-inch length and 0.25-inch width.

The L-com MCX Plug PCB connector has a PTFE dielectric type. This MCX PCB connector has a brass body with gold plating. Our RFPCB-MCX-MS-6G-117 MCX connector has a brass contact with nickel plating.

This L-com MCX Plug connector will ship the same day as purchased. Our MCX Plug connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for worldwide shipment. We also build MCX custom connector cable assemblies that will ship the same day as well.

The MCX Plug connector with 50 Ohm impedance has a weight of 0.007 lbs. This Push-on RF connector has a high quality construction. The Plug coaxial connector is capable of operating at temperatures ranging from -55 deg C to 155 deg C. We currently have a variety of antenna, audio/video, Ethernet, fiber optic, and USB connectors in our portfolio that are ready to ship today. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF that meets your requirements.
