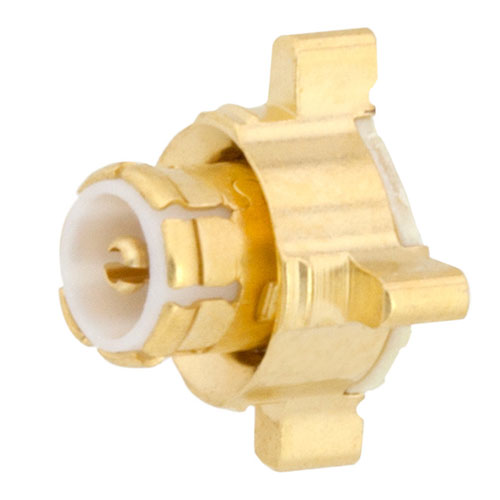

MMBX Plug Slide-On Connector Solder Attachment Surface Mount PCB, With Male Center Contact

RFPCB-MMBX-MS-12G121 MMBX Plug PCB connector available from L-com has a 50 Ohm impedance. This RF connector has a Surface Mount connector mount interface and is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. This MMBX Plug connector uses solder/Solder as an attachment method. Our Plug MMBX PCB connector provides a maximum frequency of 12.4 GHz. The MMBX connector is available in a 0.24-inch length and 0.24-inch width.

The L-com MMBX Plug PCB connector has a PTFE dielectric type and a VSWR of 1.06:1. This MMBX PCB connector has a Beryllium Copper body with gold plating. Our RFPCB-MMBX-MS-12G121 MMBX connector has a brass contact with gold plating.

This L-com MMBX Plug connector will ship the same day as purchased. Our MMBX Plug connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for worldwide shipment. We also build MMBX custom connector cable assemblies that will ship the same day as well.

The MMBX Plug connector with 50 Ohm impedance has a weight of 0.010 lbs. The Plug coaxial connector is capable of operating at temperatures ranging from -55 deg C to 155 deg C. We currently have a variety of antenna, audio/video, Ethernet, fiber optic, and USB connectors in our portfolio that are ready to ship today. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF that meets your requirements.
