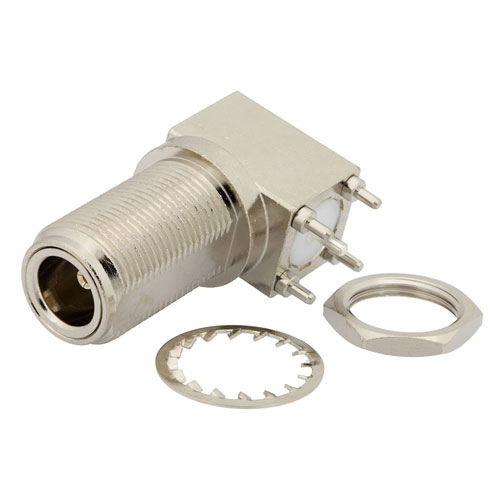

N Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .596 inch D Hole

RFPCB-N-FR-10G-134 N Female right angle PCB connector available from L-com has a 50 Ohm impedance. This RF connector has a thru hole connector mount interface and is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. This N Female connector uses solder as an attachment method. Our Female N PCB connector provides a maximum frequency of 10 GHz. The N connector is available in a 1.63-inch length and 0.74-inch width.

The L-com N Female PCB connector has a PTFE dielectric type. This N PCB connector has a Beryllium copper body with Silver plating. Our RFPCB-N-FR-10G-134 N connector has a brass contact with nickel plating.

This L-com N Female connector will ship the same day as purchased. Our N Female connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for worldwide shipment. We also build N custom connector cable assemblies that will ship the same day as well.

The N Female connector with 50 Ohm impedance has a weight of 0.139 lbs. This threaded RF connector has a high quality construction. The jack coaxial connector is capable of operating at temperatures ranging from -65 deg C to 165 deg C. We currently have a variety of antenna, audio/video, Ethernet, fiber optic, and USB connectors in our portfolio that are ready to ship today. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF that meets your requirements.
