Passive DWDM, OSP Ring OADM, 1 Channel, 100 GHz spacing, Ch58, Monitor (1%), 900um 1m fiber, without connector
222,17 € – 231,43 €

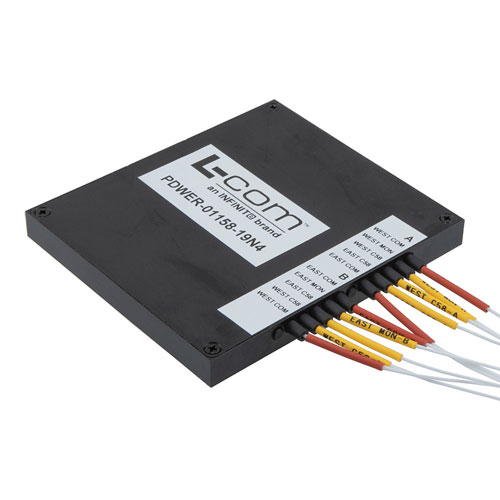

L-com’s PDWER-01158-19N4 is a DWDM passive filter with 1 channel – ITU channel 58 and 100GHz spacing. PDWER-01158-19N4 is a OSP Ring OADM.L-com’s PDWER-01158-19N4 has a monitor (1%) port and 1.0m 900um buffer fiber leads. PDWER-01158-19N4 monitor port taps 1% of the total signal power. This value is sufficient for use with monitoring and measurement devices, such as power meters or network analyzers. L-com’s PDWER-01158-19N4 is one of thousands of fiber optic products available in-stock and ready to ship today. Features Passive DWDM OSP Ring OADM 100 GHz spacing 1 Channel Channel 58 Monitor 1% 1.0m 900um buffer fiber leads…
6 disponibles
231,43 €
Descripción
L-com’s PDWER-01158-19N4 is a DWDM passive filter with 1 channel – ITU channel 58 and 100GHz spacing. PDWER-01158-19N4 is a OSP Ring OADM.L-com’s PDWER-01158-19N4 has a monitor (1%) port and 1.0m 900um buffer fiber leads. PDWER-01158-19N4 monitor port taps 1% of the total signal power. This value is sufficient for use with monitoring and measurement devices, such as power meters or network analyzers. L-com’s PDWER-01158-19N4 is one of thousands of fiber optic products available in-stock and ready to ship today.
Features
- Passive
- DWDM
- OSP Ring OADM
- 100 GHz spacing
- 1 Channel
- Channel 58
- Monitor 1%
- 1.0m 900um buffer fiber leads
Application
- Single Mode Fiber Networking
- Single Fiber
- Mux function
- Metro transport
- Regional Distribution
- Outside Plant (OSP) Operation
Información adicional
| Peso | 0,226796 kg |
|---|---|
| Connector | Pigtailed |
| Filter Type | DWDM |
| Family | OSP |
| Ruggedized | Yes |
| Module Type | Cassette |
| Module Function | Ring OADM |
| Channel Count | 1 |
| Country of origin |
