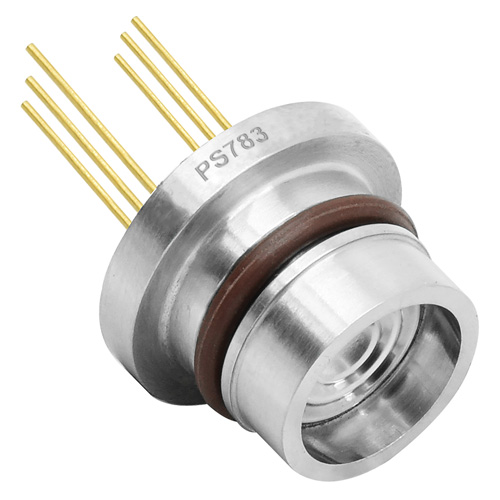

Pressure Sensor, 0-200kPa, Gauge, Compensated, with cap 16.8mm diameter

PS783-I07GL1 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. Optimized for middle to high pressures, the PS783-I07GL1 contains a highly stable silicon die, stainless steel 316L housing with diameter 12.6 mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal. Features 12.6mm compact size Isolated construction, enable to measure various fluid media Long-term stability ±0.1%FS/year Pressure range: 0-200kPa Wide temperature compensation range Application Aviation and navigation systems Industrial process control Level measurements Cooling equipment and air…
