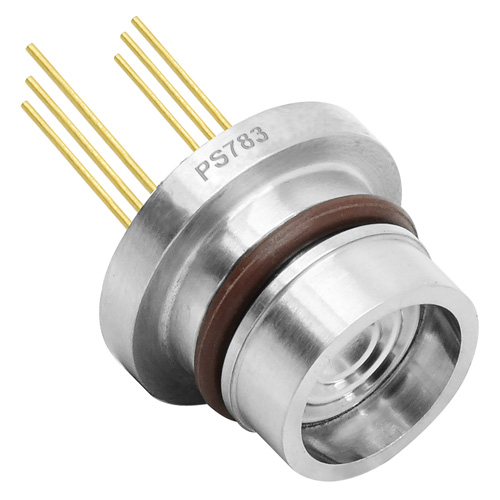

Pressure Sensor, 0-350kPa, Gauge, Compensated, with cap 16.8mm diameter

PS783-I08GL1 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. Optimized for middle to high pressures, the PS783-I08GL1 contains a highly stable silicon die, stainless steel 316L housing with diameter 12.6 mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal. Features Long-term stability ±0.1%FS/year Pressure range: 0-350kPa Wide temperature compensation range 12.6mm compact size Isolated construction, enable to measure various fluid media Application Cooling equipment and air conditioning systems Gas and liquid pressure measurements Aviation and…
