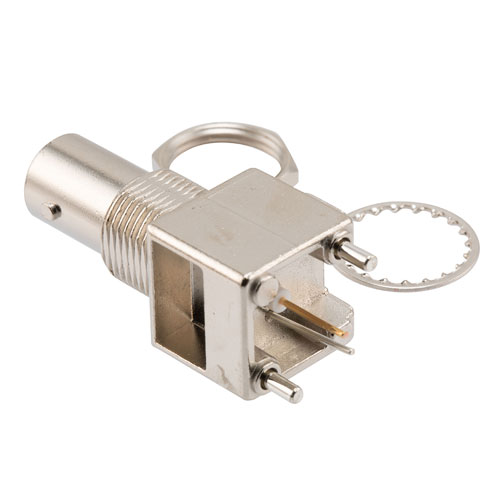

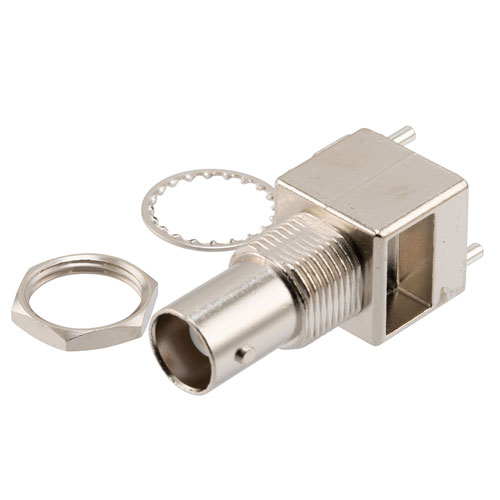

RF PCB Connector, BNC panel jack, Bulkhead

RFPCB-BNC-F-S-4G-1 BNC jack PCB connector available from L-com has a 50 Ohm impedance. This RF connector is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. The BNC connector is available in a 1.65-inch length, 0.63-inch width, and 0.63-inch height.

This BNC PCB connector has a zinc alloy body with nickel plating. Our RFPCB-BNC-F-S-4G-1 BNC connector uses phosphor bronze contact and gold plating material. The BNC jack connector uses solder as an attachment method. Additional dimensions and specifications for this BNC jack PCB RF connector are on our downloadable PDF datasheet above.

This L-com BNC jack connector will ship the same day as purchased. Our BNC jack connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for worldwide shipment. We also build BNC custom connector cable assemblies that will ship the same day as well.

This BNC jack connector with 50 Ohm impedance has a weight of 0.02 lbs. The RFPCB-BNC-F-S-4G-1 threaded RF connector has a high-quality construction. We currently have a variety of antenna, audio/video, Ethernet, fiber optic, and USB connectors in our portfolio that are ready to ship today. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF product that meets your requirements.
